206306-1
Manufacturer:
TE Connectivity
Mfr.Part #:
206306-1
Datasheet:
Description:

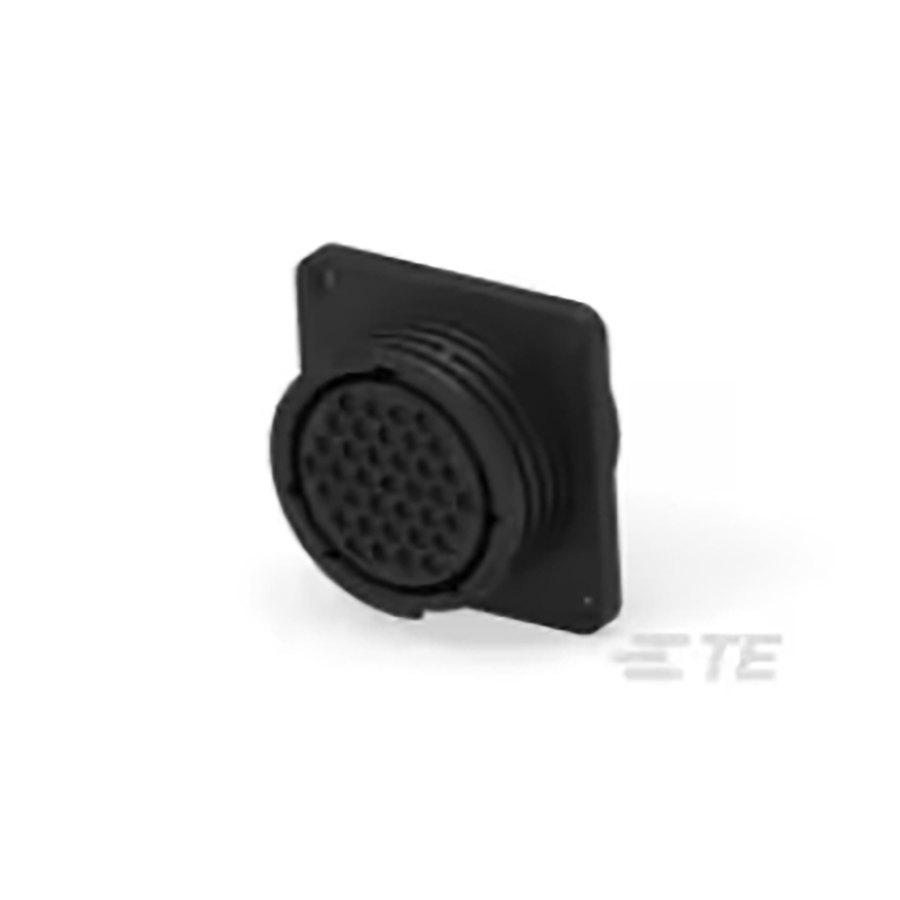

Circular Connectors Panel Socket (Female) Receptacle Housing
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 37 |
| Packaging | Bulk |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| Current Rating | 13 A |
| Flammability Rating | UL94 V-0 |
| Orientation | A |
| Operating Supply Voltage | 600 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Black |
| Gender | Female |
| Shielding | Unshielded |
| Number of Contacts | 37 |
| Connector Type | Receptacle Housing |
| Number of Positions | 37 |
| Insulation Material | Thermoplastic |
| Housing Material | Nylon |
| Contact Style | Socket |
| Housing Color | Black |
| Contact Gender | Socket (Female) |
| Number of Power Positions | 0 |
| Number of Signal Positions | 37 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Mating Retention | With |
| Mating Alignment | With |
| Contact Protection | With |
Stock: 1216
Distributors
pcbx
pcbxUnit Price$3.52317
Ext.Price$3.52317
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.52317 | $3.52317 |
| 10 | $3.39834 | $33.98340 |
| 25 | $3.16666 | $79.16650 |
| 50 | $3.02246 | $151.12300 |
| 100 | $2.88482 | $288.48200 |
| 300 | $2.75345 | $826.03500 |
| 500 | $2.62806 | $1314.03000 |
| 1000 | $2.62207 | $2622.07000 |
